The NCM Paris Max is NCMs, curvy foldable bike series. With a lower tube design and a large rear mounted battery for extra range. NCM foldable Bikes are designed to be compact and light weight, whilst also providing high quality strength and reliability.
|
Motor |
Bafang motor, 36V 250W, max speed 25 km/h |
| Battery | DEHAWK R4Y-3614P, 504Wh, 36V 14Ah |
|
Display |
Bafang MAX, C966 LCD Display |
|
Charger |
SANS 36V 2A |
|
Frame |
Alu. 6061, 395mm |
|
Forks |
RST SS A2 |
|
Braking System |
Front: Tektro Mechanical Disc |
|
Gear Selector |
Shimano Nexus, 8 speed |
|
Front Derailleur |
N/A |
|
Rear derailleur |
Shimano Nexus, 8 speed internal |
|
Saddle/seat |
Selle Royal, New Ariel |
|
Tyres |
Schwalbe Big Apple. 20×2.0 |
|
Handle Grips |
Velo, Black |
|
Pedal |
Wellgo, Foldable |
|
Range |
Up to 100 km (depending on terrain conditions & power level settings) |
|
Weight |
24 kg |

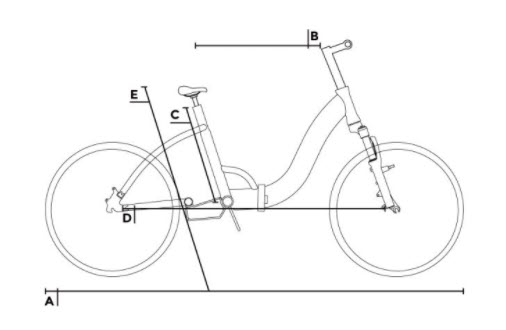

| A | F | E | C | B | D | |
|---|---|---|---|---|---|---|
| Rider height | Standover height | Overall Length | Reach | Frame size | Wheel Base | Min/Max Seat Height |
| 150-182 | 50 | 162 | 59 | N/A | 117 | 82/94 |
